Diamond Coated Hole Drill Bits For Porcelain Ceramic Tile
$29.00 – $159.00

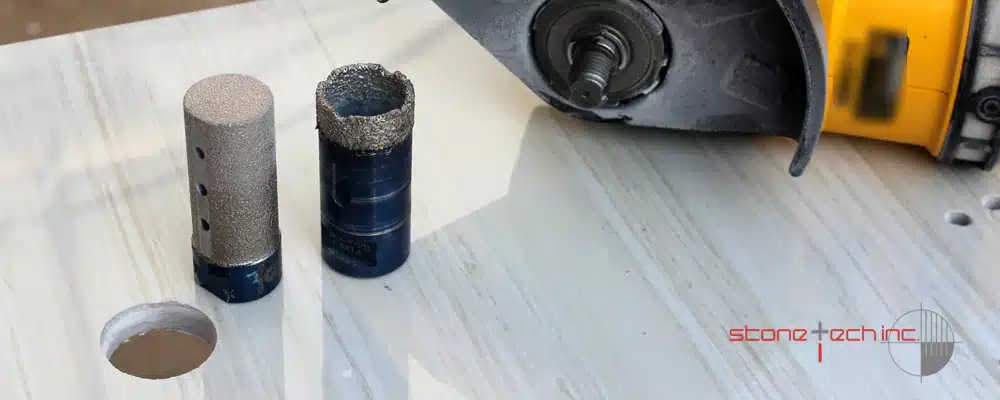

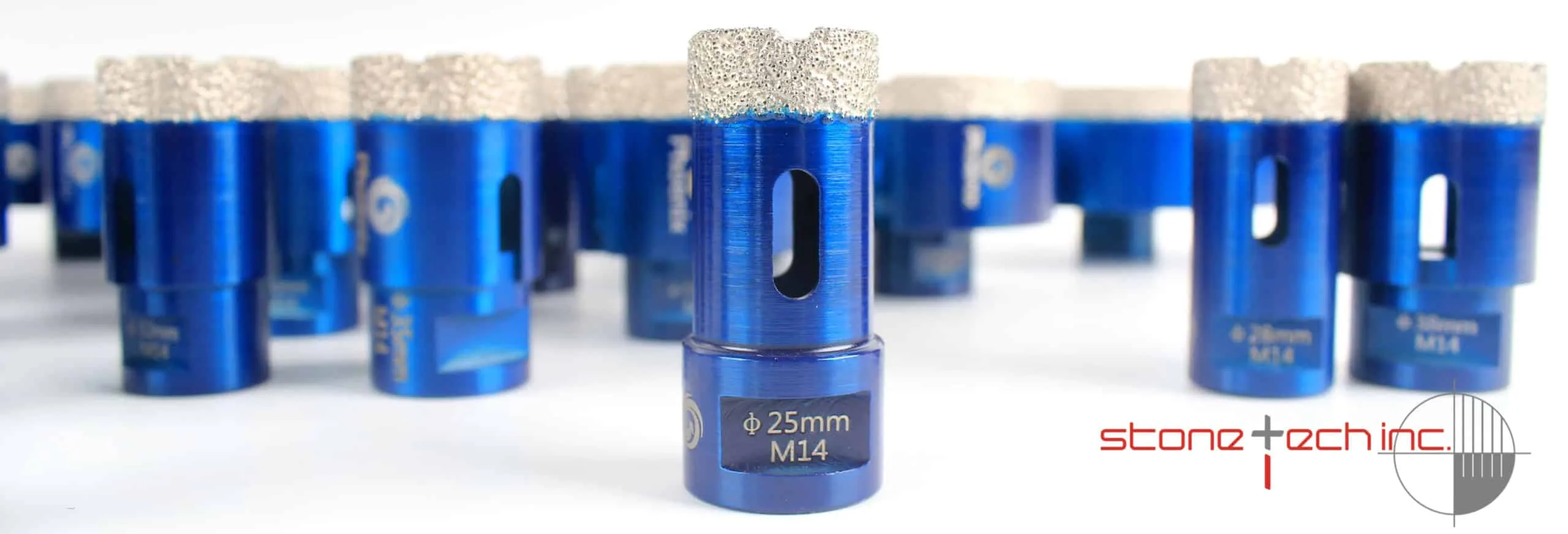

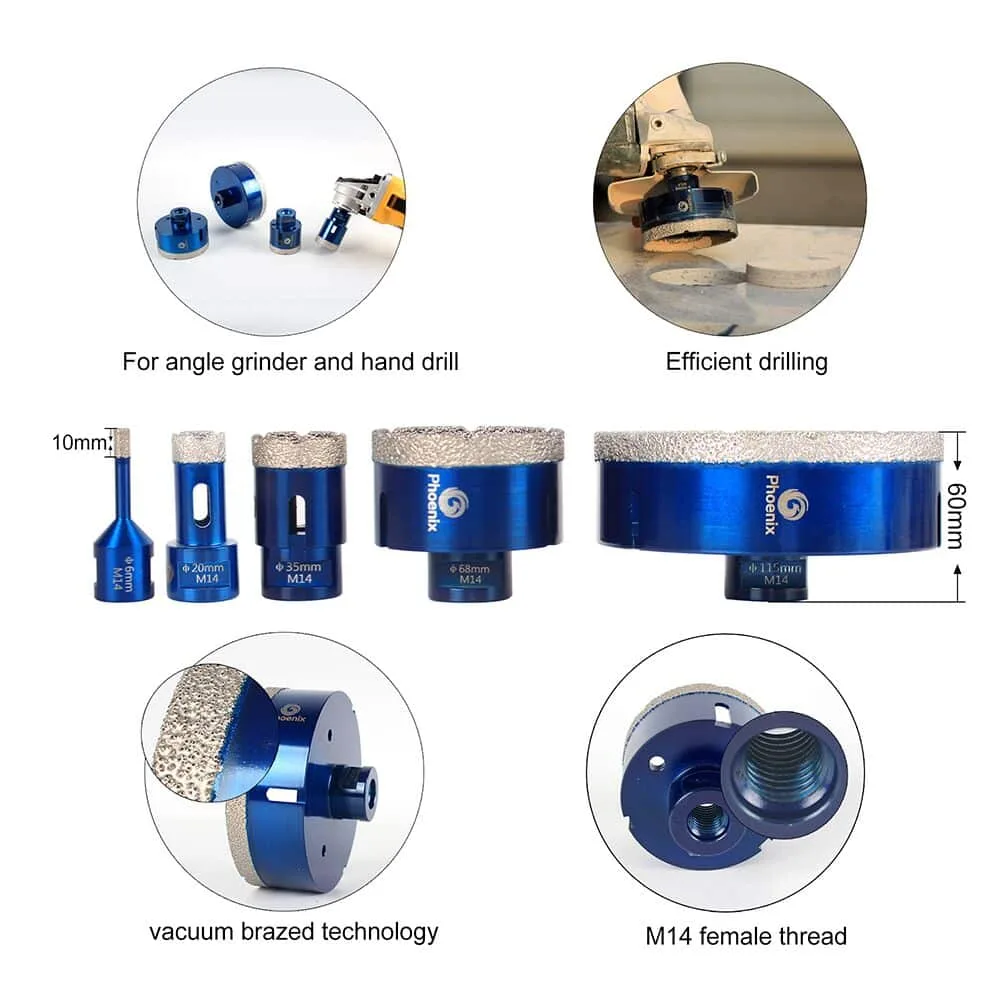

Vacuum Brazed Diamond Hole Saw Drill Bits
Designed for ceramic tiles, porcelain tiles, Dekton, marble, granite and concrete.

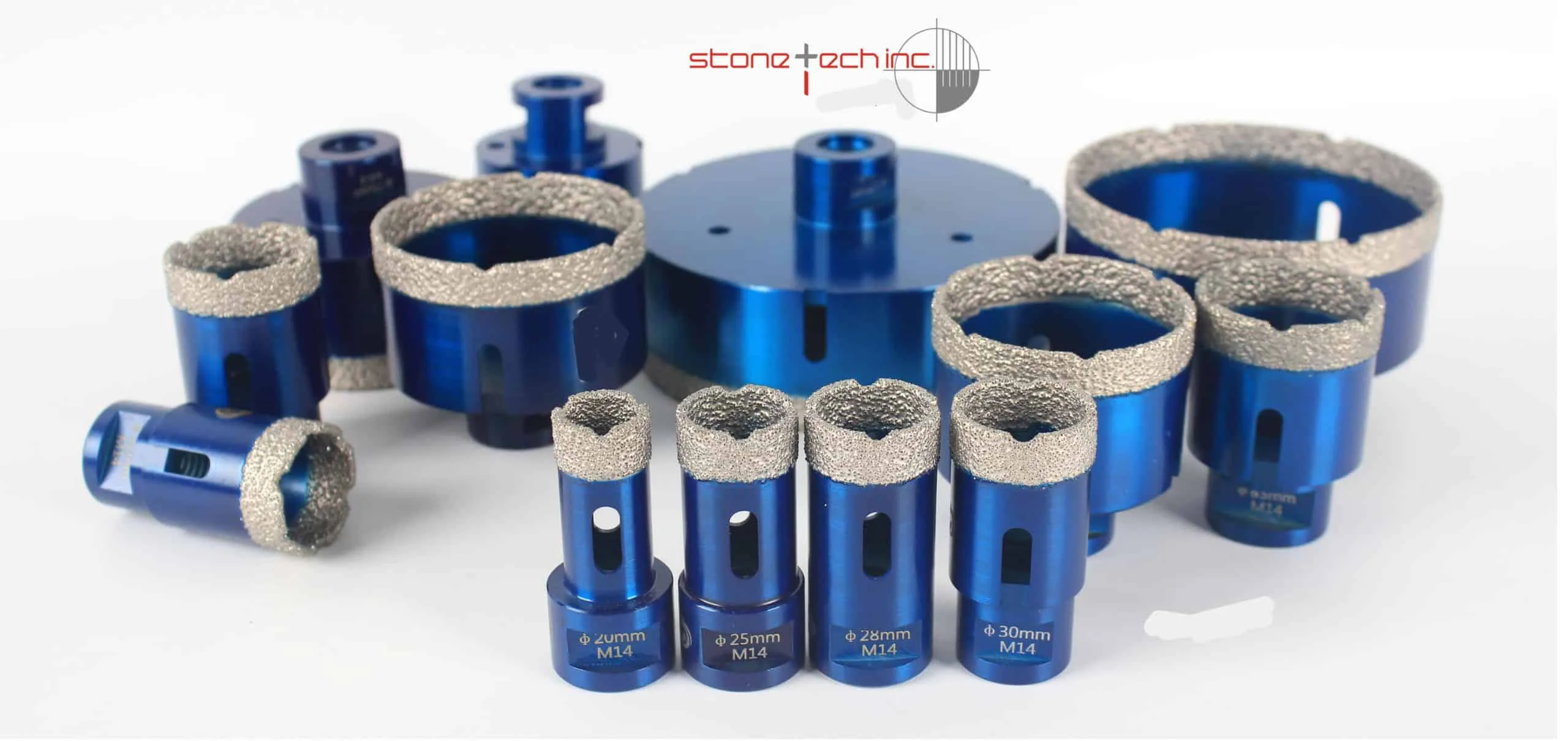

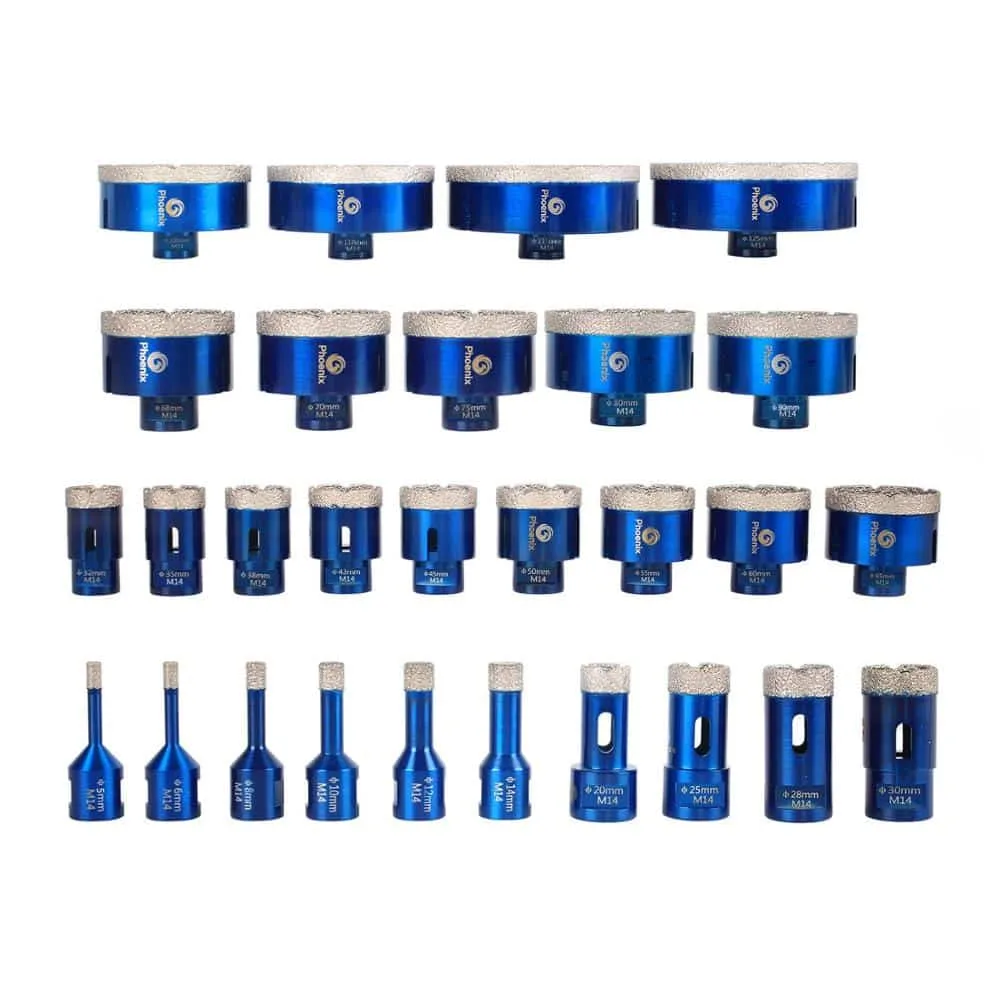

Diameter size are available in 20-125 mm
10 mm diamond height
5/8″-11 USA , M14 Europe Thread

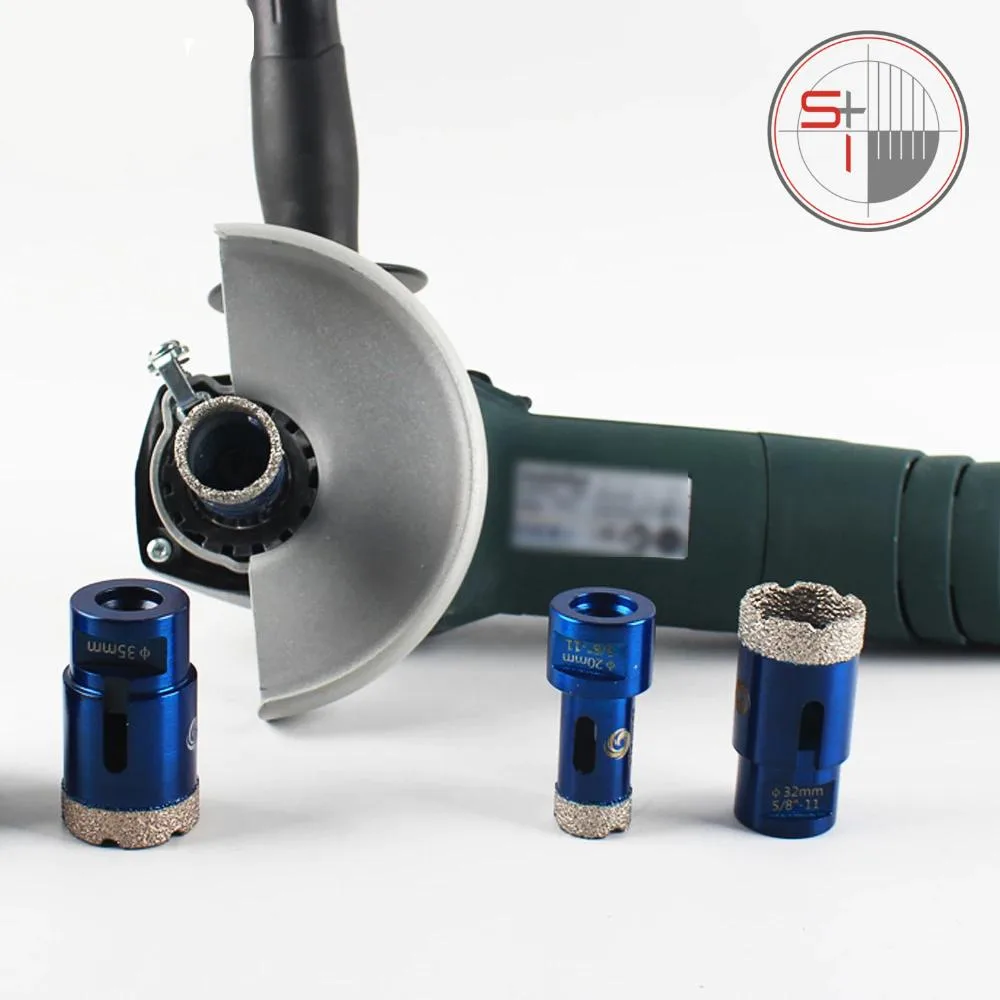

Fit On Most of Angle Grinder and power drill
Average Life: 50-60 holes Minimum Work Speed: 10000 rpm
Dry Work Only

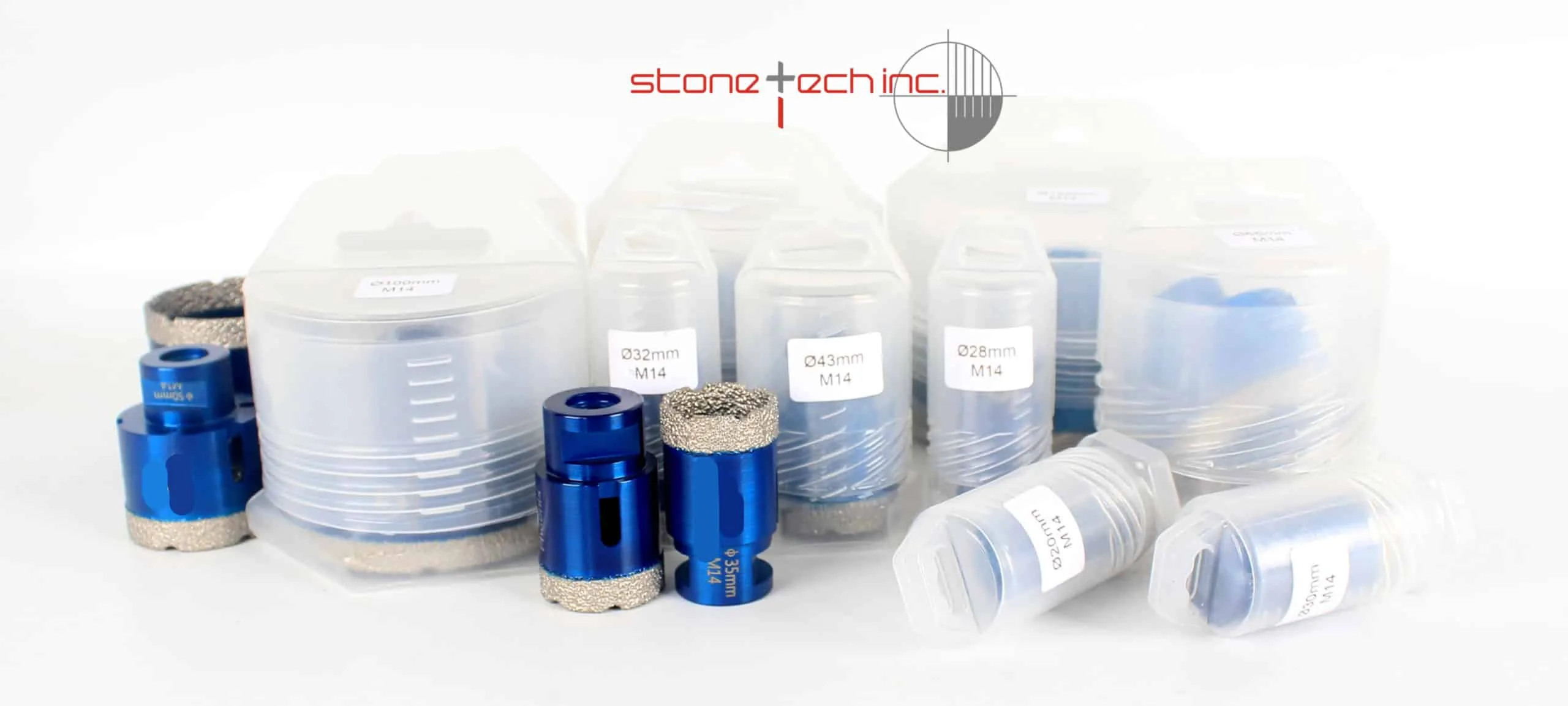

Plastic Bister Package

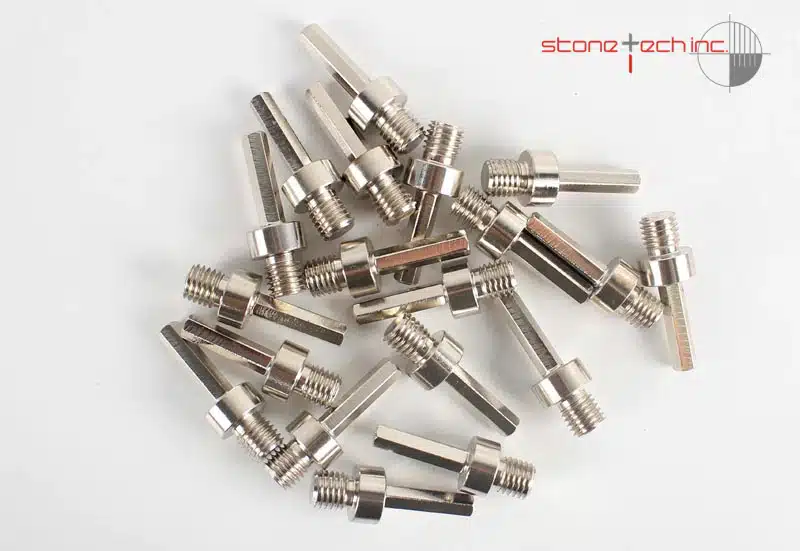

If you need the adapter, choose it









Note:
The average life of the tile drill bit depend on the type of material, thickness, proper cooling and user. Confirm the suitable rotation speed and perform a slight orbital movement while drilling Before futher drilling, we must ensure that the drilling bit is clean and free of any obstruction.​
Start drilling as per following instructions:

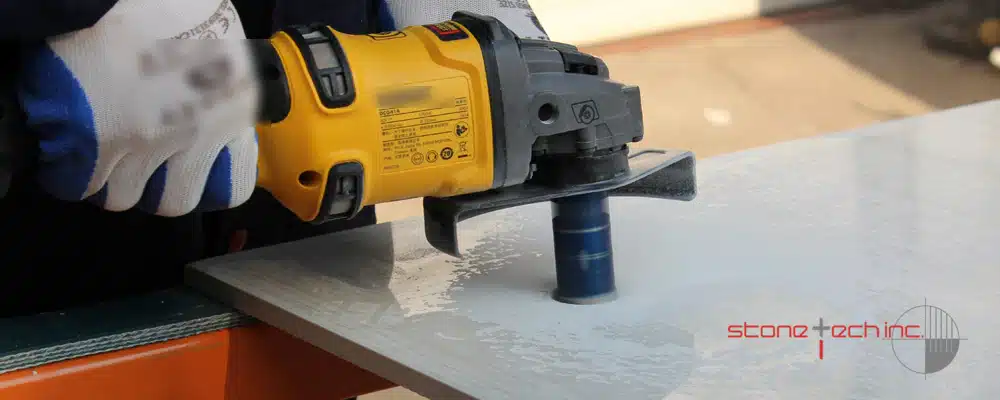

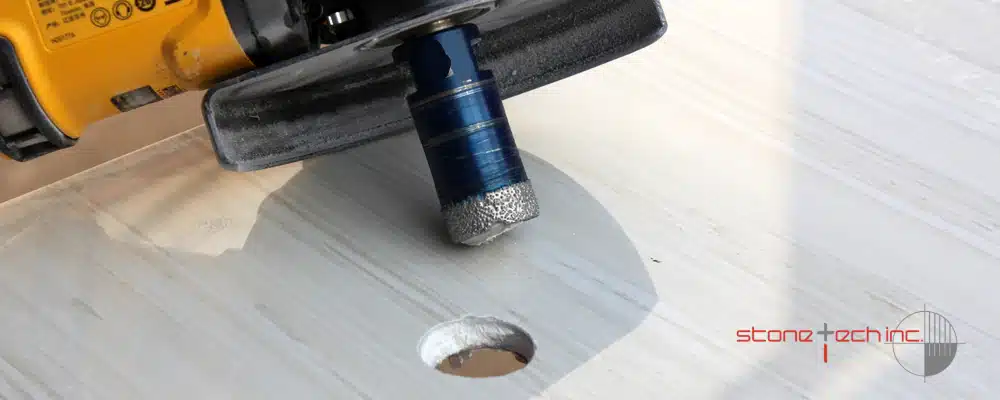

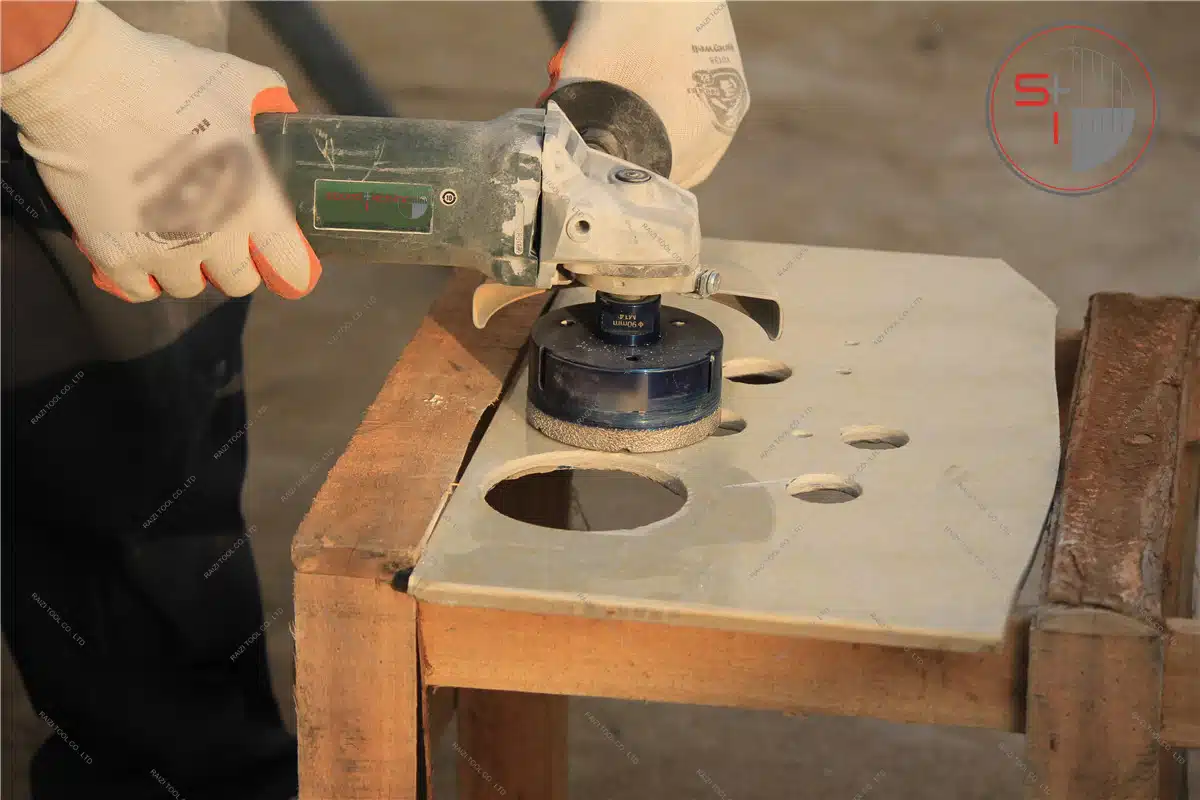

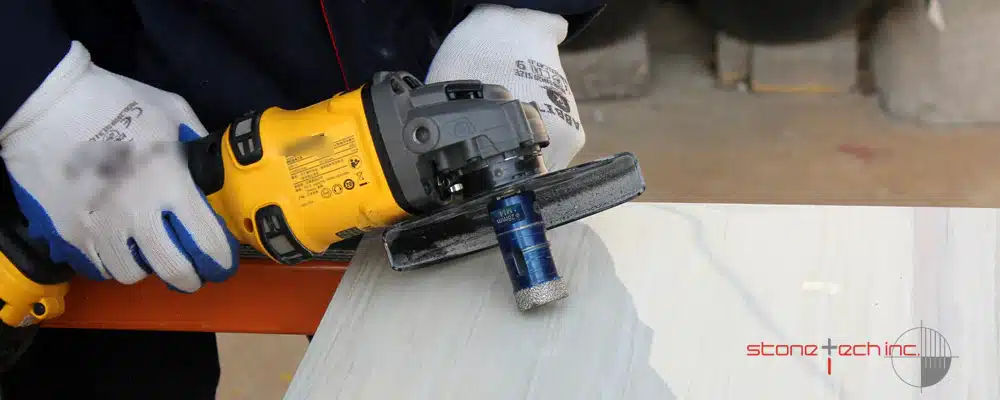

Place the drill at a 45 degree angle. Drilling till the hole start to form. Bring the drill up into upright position. Continue to drill and swaying the machine along a circle.
Brand Name |
STONETECH INC |
---|---|
DIY Supplies |
Tiling |
Type |
Center Drill Bit |
length |
60 mm |
Use |
Masonry Drilling |
Model Number |
UM-All |
is_customized |
Yes |
Product name |
Diamond Tile Drill bit |
Connect thread |
M14(Europe),5/8"-11(USA) |
Usage |
Dry |
Application |
Porcelain Tile,Ceramic,Granite,Marble stone,Concrete |
Recommended Speed |
10000-11000 rpm |
Diameter |
20-125mm |
Diamond length |
10mm |
Material |
Diamond and Metal |
Machine |
Angle grinder |
Packing |
Blister packing |
