Name: Manual Multi-Function Tile Cutting Machine | 3KW Stone Cutter
SKU: 33931
Price: 4000.00 USD
Availability: InStock

Manual Multi-Function Tile Cutting Machine | 3KW Stone Cutter

$4,000.00

– The Manual Multi-function Cutting Tile Machine is designed for high-performance cutting of granite, marble, and other stone materials.
– With a robust 3KW motor and a cutting range from 6mm to 30mm in thickness, this table saw machine delivers precision and efficiency for both professional and industrial applications.
– Built with durability in mind, the machine weighs 350kg and features a spacious cutting table measuring 2200mm x 1500mm x 1400mm, making it an ideal choice for large-scale tile cutting projects.

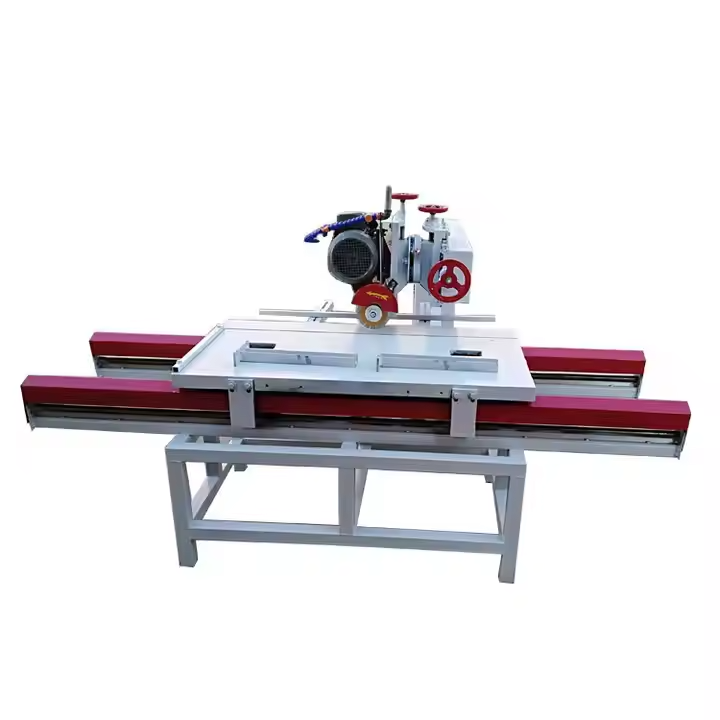

Manual Multi-function Cutting Tile Machine for granite and marble cutting with large table saw and 3KW motor.

Applications

Precision straight cutting across granite, marble, quartz, and stone tiles.
In addition, cut clean bevel miters and grooves on decorative stair treads.
Sizing thick porcelain stoneware panels ranging from 6 mm to 30 mm depth.
Furthermore, execute edge profiling and trimming on architectural masonry pavers.
Processing medium-to-large format stone tiles up to 1200 mm by 1200 mm.
Consequently, fabricators complete complex edging and sizing on a single table.

Manual Multi-Function Tile Cutting Machine – 3kW

Product Overview

The Manual Multi-Function Tile Cutting Machine delivers heavy-duty fabrication power and multifunctional versatility for demanding tile and stone processing shops. Built with a rigid 350 kg reinforced steel chassis, this stationary machine eliminates vibration to prevent chipping across dense materials.

Additionally, the robust 3kW electric motor provides consistent rotational power through thicknesses ranging from 6 mm up to 30 mm. The manual carriage feed gives stone masons direct tactile feedback during operation, allowing them to adjust feed pace dynamically to match hard granite or delicate crystalline marble. Furthermore, the versatile cutting assembly handles straight slicing, chamfering, and grooving on tiles up to 1200 mm wide.

Meanwhile, the generous 2200 mm x 1500 mm table provides ample support for large stone slabs without awkward overhangs. The integrated continuous water circulation pump floods the diamond blade continuously to wash away abrasive slurry and suppress dangerous airborne silica dust completely. Therefore, stone fabricators achieve clean, factory-grade edge finishes across every job. As a result, this reliable multi-function machine speeds up daily workshop output while keeping tooling wear minimal.

Why Choose this Machine

Because manual carriage feed provides tactile feedback, blade binding is eliminated.
Moreover, robust 3kW drive motors slice cleanly through stone up to 30 mm thick.
Heavy 350 kg steel chassis prevents mechanical vibration and structural frame flex entirely.
In addition, continuous high-volume water cooling keeps diamond blades sharp and cool.

⚙️ Key Features

High-Power 3kW Drive Motor: Heavy-duty motor windings maintain maximum rotational speed under deep cutting loads. Furthermore, sustained cutting torque handles dense granite, marble, and porcelain slabs effortlessly.
Deep 6 mm to 30 mm Cutting Range: Adjustable vertical clearance slices through thin wall tiles and thick paving slabs alike. Consequently, workshop personnel process diverse stone orders without changing machines.
Tactile Manual Carriage Slide: Smooth linear bearings glide the material carriage across the cutting plane evenly. Therefore, sensitive manual control prevents blade stalling and jagged tile chipping.
Heavy-Duty 350 kg Steel Construction: Massive structural steel fabrication eliminates carriage wobble and bed deflection completely. As a result, long linear cuts remain true without wander or edge distortion.
Continuous Dust Suppression System: High-output submersible pumps channel steady water directly to diamond segments. Thus, the cutting path stays cool while hazardous silica dust is eliminated safely.

Important Shipping & Tax Notice

Pricing (EXW): Displayed prices reflect Ex Works terms (factory origin); therefore, they exclude transportation, export loading, insurance, and transit logistics.
Freight Calculations: Because shipping is billed separately, freight charges are determined by dimensions, destination, and transit method before dispatch.
Customs, Duties & Taxes: In addition, buyers remain fully responsible for destination import duties, VAT/GST, local tariffs, and border clearance fees.
