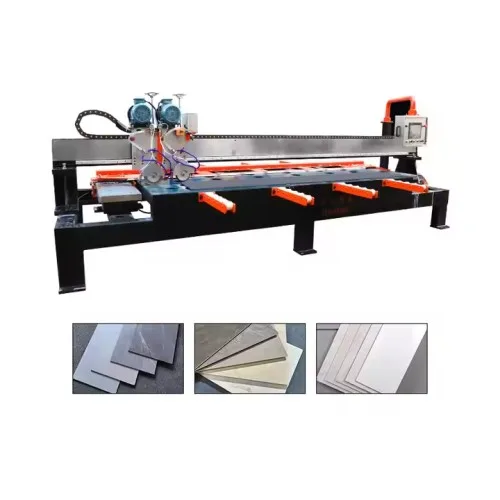

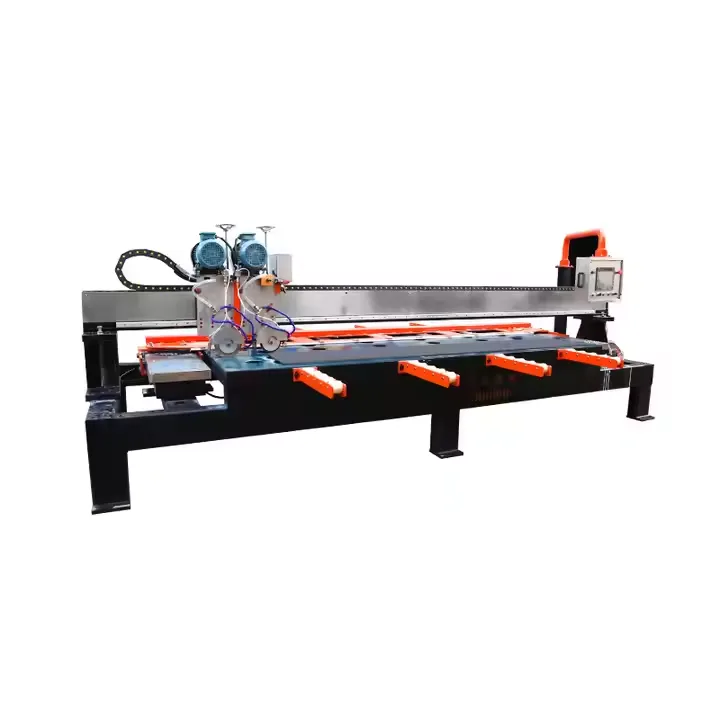

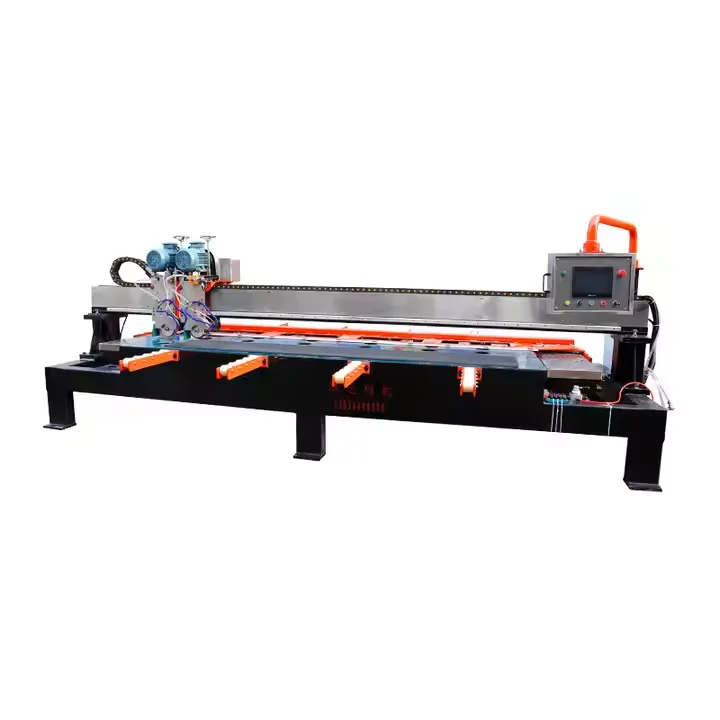

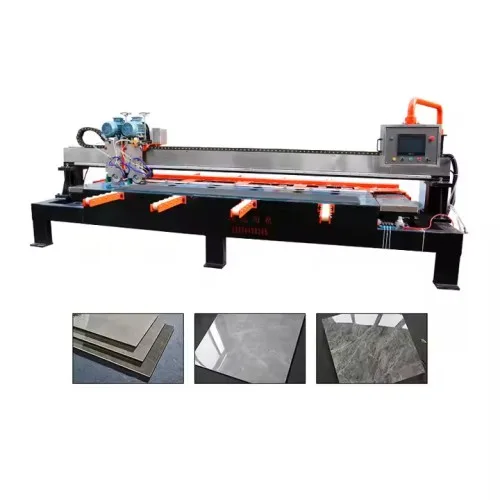

Name: Fully Automatic 3200 Large Format Tile Saw Cutter
SKU: 33156
Price: 13334.00 USD
Availability: InStock

Fully Automatic 3200 Large Format Tile Saw Cutter

$13,334.00

– The Fully Automatic 3200 Tile Saw Cutter is specially designed for precision wet cutting of large-format tiles, including porcelain, sintered stone, marble, and ceramic.
– With a maximum cutting thickness of 30mm and an effective cutting size range up to 3200mm, it meets the needs of both high-volume tile factories and professional tile installers.

Fully Automatic 3200 Large Format Tile Saw Cutter for Porcelain, Stone, and Ceramic

This cutter is equipped with a 3KW+3KW dual-motor system, providing powerful cutting speed and accuracy. The CNC-controlled size settings ensure exact cuts, while the dual-blade design performs both cutting and edge grinding simultaneously. This minimizes chipping, cracking, and dropped corners, especially on delicate materials like 15mm porcelain slabs, achieving smooth edges without additional finishing.

Designed for ease of use, the machine’s fully automated operation is powered by an air pressure feeding device and CNC control system, which precisely controls the cutting size. An effective spindle speed of 6000 RPM ensures quick, smooth, and accurate cuts every time. This machine also allows customization, supporting additional or reduced features according to user requirements.

HoYun 3200 Fully Automatic Large Format Tile Saw Cutter for Porcelain, Marble, and Ceramic

Fully Automatic Large Format Tile Cutter 3200

3200 Fully Automatic Large Format Tile Saw Cutter for Porcelain, Marble, and Ceramic

Weighing 3000 kg and constructed for durability, the HoYun 3200 comes with core PLC components and a 1-year warranty. It includes a complete machinery test report and video outgoing inspection, making it a reliable choice for high-demand applications. It is especially popular in porcelain slab processing plants and other industrial settings, with a production capacity of 1.5-3m/min for large-scale operations.

Key Features

Fully Automated Operation – CNC-controlled for precise and repeatable cuts.
High Cutting Capacity – Effective cutting size of up to 3200mm and thickness of 30mm.

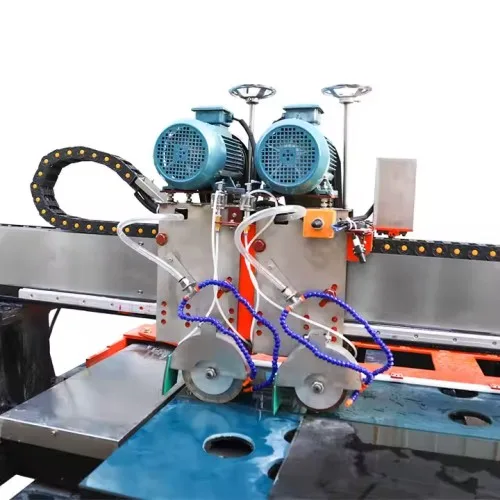

Dual Blade System – Performs cutting and edge grinding simultaneously for smooth finishes.
Powerful Motor – Dual 3KW motors provide high-speed, efficient cutting.
Anti-Crack Technology – Ensures no cracking or corner drops for delicate slabs.
6000 RPM Spindle Speed – High speed for efficient, smooth cutting.
Air Pressure Feeding – Automated feeding for hassle-free operation.
Customizable Features – Allows tailored configurations for specific requirements.
Durable Build – Heavy-duty construction with PLC core components for longevity.
Packaging Options – Inner bubble wrap with optional wooden case for secure delivery.
